Custom Ball Point Set Screw
| Thread Size: | M6 |
|---|---|
| Length size: | 12mm |
| Drive type: | Slotted or Hex Socket |
| Material: | Stainless Steel 304 |
| Finish: | Clean |
| Sample: | The sample is free of charge if we have the existing tooling,you only need to pay for the freight cost |
| Delivery time: | Samples time 3-5 working days, Lead time 7-15 working days |
| Customized according to customer requirements |
What is a ball point set screw?
Ball point set screw（also called positioning bead screw, steel ball set screw, spring plunger set screw）
Ball point set screw is a derivative of the set screw, composed of spring, steel ball, screw shell. Ball point set screw is often used in mold, fixture, assembly and other work.The screw body itself is available in long, short, and standard types to accommodate pressure and fix the body. Spring is divided into light load and heavy load two kinds. The spheres are made of hardened steel or stainless steel, and can also be made of artificial materials such as nylon, polyformaldehyde resin (polyformaldehyde spring device) or phenolic resin. These materials provide high strength and durability with sufficient elasticity

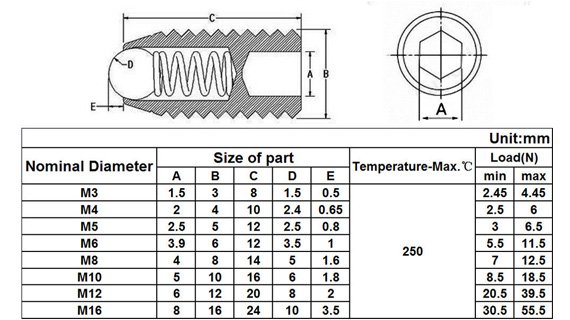

Material and Common Specifications of Ball Point Set Screw
Screw Material：Stainless Steel/Carbon Steel
Ball Material: Hardened Steel, Stainless Steel, Nylon, Polyformaldehyde resin or Phenolic resin
Common specification:
- M3*8mm
- M4*10mm
- M5*12mm
- M6*12mm
- M8*16mm
Ball Point Set Screw Locking Method
There are two common types of Ball point set screw:
- Slotted driver
- Hex Socket driver
